描述

自然堆積密度計

型號;QL-1003
自然堆積密度計依據國家標準GB/T 16913.3-1997???GB/T16913-2008的規定設計、生產。本裝置適用于粉塵堆積密度的測定。試樣的采集請參考GB/T 16913.1-1997 粉塵物理實驗方法第1部分：試樣粉塵的采集中的相關規定。

原理

粉塵從漏斗口在一定高度自由落下充滿量筒；測定松裝狀態下量筒內單位體積粉塵的質量，即粉塵堆積密度。

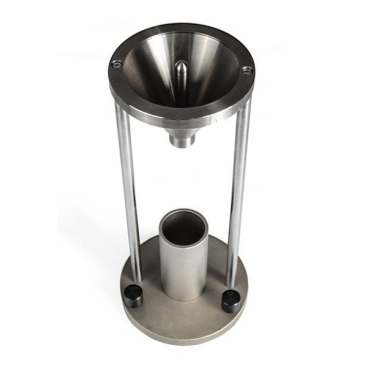

儀器結構

1、漏斗(流出口直徑12.7 )

漏斗不銹鋼材料制成，其中漏斗錐度為60°±0.5°。
2、測量架

不銹鋼材質，用于在粉塵裝入漏斗時防止粉塵下落。
3、天平（客戶自備）

最大稱量300g；精度0.01g。

4、量筒

本裝置配備一只容積為100ml的不銹鋼量筒，量筒內徑為Φ39mm。

5、刮板

不銹鋼材質，用于在粉塵裝入漏斗時去除多余的粉塵。

6、毛刷

清理儀器用

Natural bulk?density meter

On the basis of?natural?accumulation of?the provisions of the national standard GB/T?16913.3-1997GB/T16913-2008?to the design and production of?density meter.?The utility model is suitable for thedetermination of bulk density?of dust.?Sample?collection?please refer to GB/T?16913.1-1997 dustphysics experiment?methods. Part first:?the relevant provisions of?the?collection?of?dust?samples.

Principle

The dust?from the funnel opening?in a?free fall height of?full?cylinder;?Determination of bulk?qualityunder the condition of?the cylinder?unit volume?of dust,?the?dust?density.

The structure of the instrument

1,?the funnel?(outlet?diameter?12.7)

The funnel?made of?stainless steel material,?wherein the?funnel?taper is 60?degrees plus or minus 0.5 degrees.

2,?measuring frame

The stainless steel material,?used to prevent?the falling dust?in the dust?in?the hopper.

3,?the balance?(customer owned)

The largest weighing?accuracy of 0.01g?300g.

4,?a

This?device is equipped with?a?volume of 100ml?stainless steel?cylinder,?the cylinder?diameter?is phi 39mm.

5,?scraper

Stainless steel?is used for removing?dust?into the?funnel?in?unwanted?dust.

6,?brush

Cleaning?instrument
